TrackScan Sharp | Wireless Optical 3D Scanning System
TrackScan Sharp | Wireless Optical 3D Scanning System

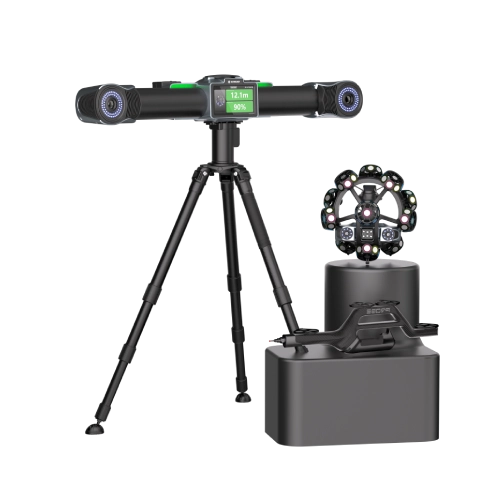

The SCANOLOGY TrackScan Sharp is a wireless optical 3D scanning system engineered for high-accuracy measurement of large parts and structures. A tracked handheld scanner captures data without requiring reference targets on the measured part, while the optical tracker provides a large working volume.
Key Specifications
- Accuracy: up to 0.025 mm
- Measurement rate: up to 6,000,000 measurements/s
- Scanning area: up to 800 × 700 mm
- Tracking distance: up to 8.5 m on applicable configurations
- High-precision measurement range: up to 135 m³ on applicable configurations
- Volumetric accuracy: 0.049 mm at 10.4 m³ for the published configuration
- Ultra-fast mode: 81 blue laser lines
- Hyperfine mode: 17 parallel blue laser lines
- Wireless: battery-powered scanner and optical tracking workflow
Large-Part Inspection
TrackScan Sharp is designed for aerospace structures, vehicles, tooling, molds, weldments, heavy machinery, and other applications where the part cannot practically be brought to a traditional CMM.
Optional probing can also help capture hidden points, holes, and discrete features that are better measured by contact.
Evaluate It on Your Part
Made To Measure can help determine whether TrackScan Sharp, KSCAN-X, NimbleTrack, AccuArm, or another system is the right solution for your required accuracy and measurement volume.
Contact us to schedule a demo or review a large-part measurement application.
