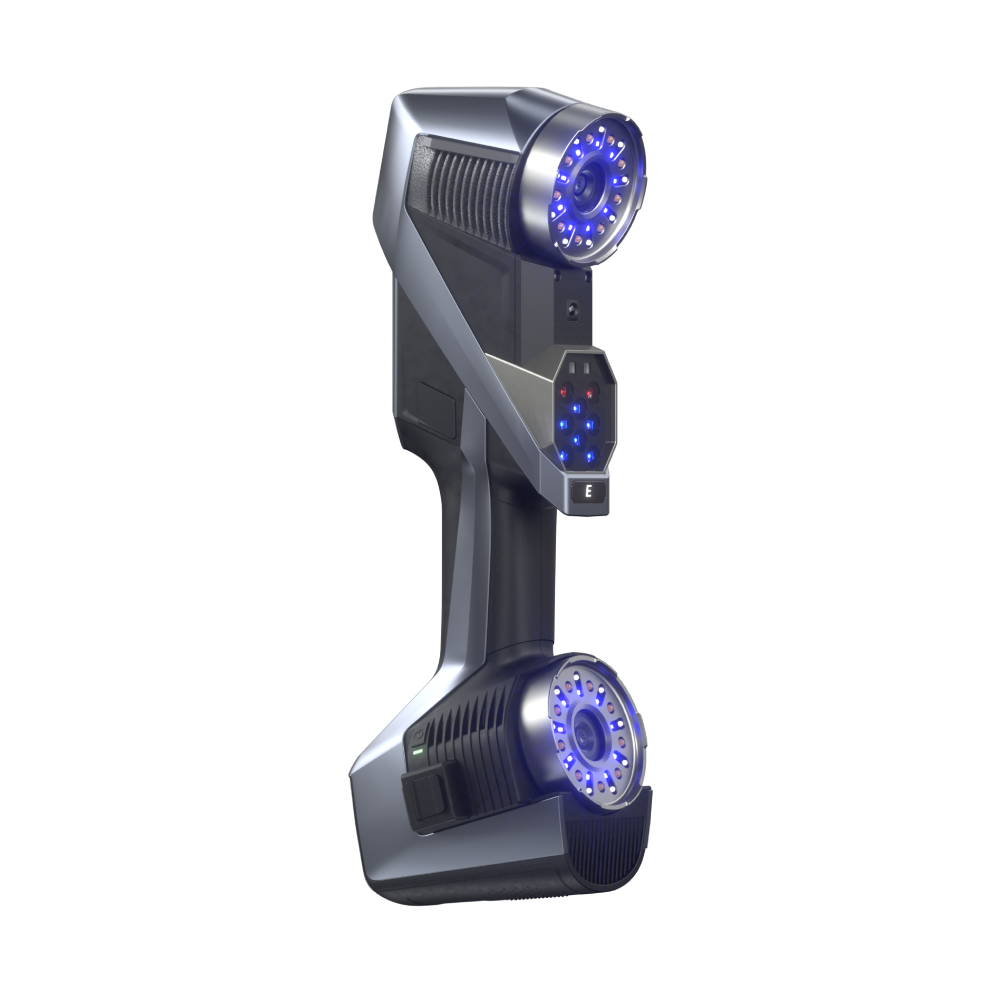

KSCAN-E | Wireless All-in-One 3D Scanner

The SCANOLOGY KSCAN-E is a wireless, all-in-one metrology-grade 3D scanner designed for dimensional inspection, reverse engineering, tooling, and large-part measurement. It combines multiple blue- and infrared-laser scanning modes with adaptive photogrammetry, allowing one portable system to cover parts from approximately 0.05 m to 8 m.

Key Specifications

• Accuracy: 0.020 mm
• Resolution: up to 0.010 mm
• Measurement rate: up to 8,290,000 measurements/s
• Scanning area: up to 1440 × 1000 mm
• Ultra-fast scanning: 108 blue laser lines
• Hyperfine scanning: 17 parallel blue laser lines
• Large-area scanning: 38 crossed infrared laser lines
• Standard volumetric accuracy: 0.015 mm + 0.030 mm/m
• With integrated photogrammetry: 0.015 mm + 0.015 mm/m
• With MSCAN-L15: 0.015 mm + 0.012 mm/m
• Wireless: Wi-Fi 6 with dual wireless NIC support
• Protection: IP50 fanless design

Where KSCAN-E Fits

KSCAN-E is a strong choice for manufacturers that want one scanner capable of moving between detailed machined components, molds and tooling, automotive assemblies, aerospace parts, and larger structures without being tied to a fixed measurement system.

Why Buy Through Made To Measure?

Made To Measure is a metrology company, not simply an equipment storefront. We can review your part, tolerances, inspection requirements, software needs, and workflow before recommending a system. We can also demonstrate scanning technology on real applications and support implementation after the sale.

Request pricing, schedule a demo, or send us your application for a scanner recommendation.
