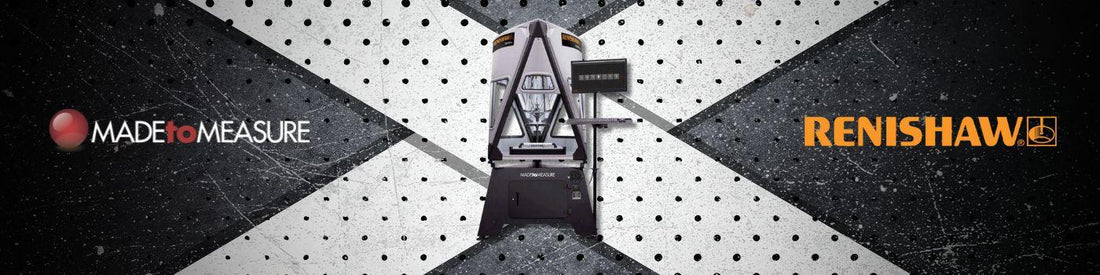

Why the Renishaw Equator X Is So Cool

The Renishaw Equator-X is one of those machines that makes quality engineers stop and say “this changes things.” It is not just another shop floor gauge and it is definitely not a traditional CMM repackaged for production. It is a fundamentally different approach to inspection that blends speed, flexibility, and traceable accuracy in a way that actually fits modern manufacturing.

Here is why the Equator-X stands out.

Two measurement systems in one machine

The Equator-X is a dual-method gauge. That is the headline feature and it is a big deal.

With a single system, you can switch between:

Absolute mode

In Absolute mode, the Equator-X behaves like a high-speed production CMM. You get fully traceable results to ISO 10360-2 with accuracy of 2.1 µm + L/300. It scans at speeds up to 250 mm/s without relying on master parts.

This is ideal for:

  • High part variation
  • Low to medium production volumes
  • Frequent inspection without constant re-mastering

If your mix changes often or you want true measurement capability on the shop floor, Absolute mode is the workhorse.

Compare mode

Compare mode is built for throughput. Scanning speeds jump up to 500 mm/s with repeatability of ±2 µm, even across wide temperature swings. Instead of chasing absolute values, you compare production parts against a mastered reference.

This shines in:

  • High-volume manufacturing
  • Environments with temperature variation
  • Processes where speed and consistency matter most

The key point is flexibility. You are not locked into one inspection philosophy. You choose the method that fits the process, part, and production reality.

Speed without the usual CMM compromises

Traditional bridge CMMs struggle when you push speed. Faster motion introduces bending, twisting, and dynamic errors. The Equator-X avoids this problem entirely.

Hexapod drive architecture

The Equator-X uses six linear motors arranged in a dynamically stiff hexapod structure. Forces act in tension or compression rather than bending, dramatically reducing speed-related errors.

This is why the machine can scan so fast while maintaining accuracy.

Separate drive and metrology frames

Renishaw separates the drive frame from the metrology frame. The drive system is optimized for speed. The metrology frame is optimized for accuracy.

The metrology frame is made from carbon fibre, keeping it rigid, lightweight, and thermally stable. A thermal expansion signature is built into the system compensation model, helping the Equator-X maintain performance on the shop floor.

Add RESOLUTE absolute optical encoders on each strut and the system knows its position immediately on power-up. No homing routines. No waiting.

Built for the shop floor, not the lab

The Equator-X is designed to live where parts are made.

  • Compact and lightweight
  • No compressed air required
  • Drives and encoders mounted above the working volume
  • Resistant to contamination and temperature variation

You can deploy it in-line or at-line without redesigning your entire cell. That alone removes a major barrier to moving inspection out of the quality lab.

A serious probing system

The Equator-X uses the industry-standard SP25M scanning probe, which matters more than it sounds.

  • Scanning for form, size, and position
  • Straight styli from 50 to 105 mm effective length
  • Cranked styli up to 83 mm
  • Automatic stylus change via a 6-port rack

This is not a compromise probe. It is a proven, flexible scanning solution that supports real inspection strategies, not just go or no-go checks.

Software that scales with your needs

Out of the box, the Equator-X includes Renishaw’s MODUS IM software platform. This is where the system really opens up.

MODUS IM is not a single program. It is a suite designed for clarity, speed, and production use.

Key capabilities include:

  • No-code, CAD-driven programming for fast deployment
  • Full DMIS programming for complex parts
  • Clean operator interfaces focused on execution, not setup
  • Advanced reporting with CAD overlays and QIF support
  • Process and machine analysis tools
  • Automation and closed-loop process control options

For shops moving toward automation or lights-out machining, tools like MODUS IM Automate and IPC Intelligent Process Control allow Equator data to feed directly back into machine tools to correct for wear and thermal drift.

Unlocking even more power with alternative software

While MODUS IM is strong, one of the underrated strengths of the Equator-X platform is its ability to integrate with third-party metrology software, such as Metrolog.

Running Metrolog on an Equator-X opens up additional possibilities:

  • Unified programming across CMMs, arms, and shop floor gauges
  • Advanced inspection strategies shared across platforms
  • Consistent reporting and data structures plant-wide
  • Easier integration into mixed-vendor environments

For manufacturers who already standardize on Metrolog or want software independence, this flexibility is huge. It protects long-term investment and avoids being locked into a single ecosystem.

Throughput, assurance, and flexibility in one system

If you boil it all down, the Equator-X succeeds because it balances three things that rarely coexist:

  • Throughput
    Extremely high scanning speeds keep inspection aligned with machining cycle times.
  • Assurance
    Fully traceable, ISO-compliant measurement gives confidence when inspection moves to the shop floor.
  • Flexibility
    Dual measurement modes, compact deployment, and software options let the system adapt as production evolves.

This is why the Equator-X is not just cool from an engineering standpoint. It is cool because it solves real manufacturing problems without forcing compromise.

Final takeaway

The Renishaw Equator-X is a shop floor measurement system built for how factories actually run today. Fast changeovers, variable production, tight tolerances, and constant pressure to do more with less.

By combining dual-method measurement, a hexapod architecture, serious probing, and flexible software options, the Equator-X earns its place as one of the most forward-thinking gauging systems available.

If you are serious about moving inspection closer to production without sacrificing confidence, this machine deserves your attention.
